Jade Zoom

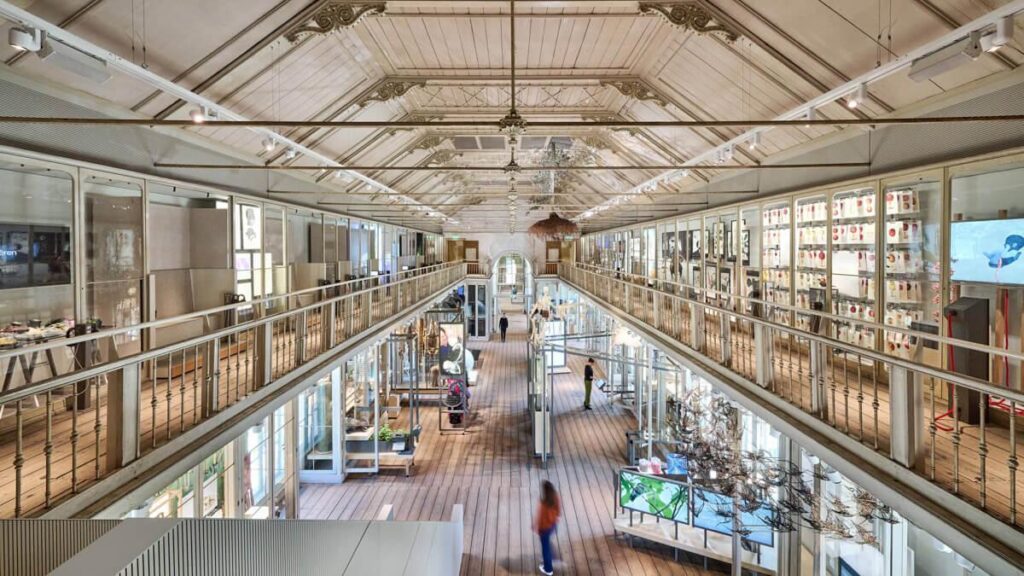

De Jade Zoom is een veelzijdig en krachtig LED armatuur. Met een zoombereik van 9° tot 58° (Bridgelux) of 11° tot 67° (Xicato) is hij ideaal voor museum-, galerie-, of high-end retailverlichting. Het geavanceerde optische systeem zorgt voor een gelijkmatige lichtkwaliteit, terwijl de keuze aan LED-lichtbronnen een perfecte afstemming op het verlichtingsplan mogelijk maakt.
- 1500 - 2000 lumen
- Max. 25 - 35 Watt
- ~90 or ~98
> Informatie
Dankzij het grote zoombereik kan de Jade Zoom vrijwel overal worden gebruikt, ongeacht de afmetingen van een object en de afstand tot het object/schilderij.
CLS Performance Zoom
Zoom bereik van 9° tot °58° (Bridgelux)
Zoom bereik van 11° tot °67° (Xicato)
Ongekend uniform lichtbeeld
Een zeer geavanceerd optisch systeem zorgt voor een ongeëvenaard uniform lichtbeeld. Dankzij de unieke CLS DFC lens biedt de Jade Zoom een hogere effectieve lichtopbrengst dan andere vergelijkbare armaturen met zoommogelijkheid. De CLS DFC lens is een glazen lens met een zeer hoge optische zuiverheid, gecombineerd met enkele unieke eigenschappen die bijdragen tot een hoge lichtefficiëntie.
Grote keuze in LED lichtbronnen
De Jade Zoom is verkrijgbaar met een Xicato Artist-, of voor CLS een speciaal ontwikkelde Bridgelux LED lichtbron. De Xicato Artist serie is de eerste keus van veel lichtontwerpers, als het gaat om de kwaliteit van het licht. Het biedt een CRI van~98, met een R9 waarde van ~95 (3000K versie)
Grote keuze in dim methodes
Local dim, DALI, DMX, Casambi Bluetooth, Wireless DMX & Local Dim + Casambi in een track adapter.
Vele accessoires
De Jade Zoom armaturenlijn beschikt over vele accessoires om voor elke toepassing het juiste licht beeld te creëren.
Diverse montage mogelijkheden
Railmontage met keuze in Global of Eutrac rail adapters.
Plafondmontage middels een draadeinde voor montage in o.a. metalen plafonds. (Jade B Zoom)
Compatibiliteiten
Aantal benodigde DMX kanalen per LED kleur
Number of DMX channels needed | ||||
LED colour | 1 | 2 | 3 | 4 |
Single colour | ||||
Tunable White | ||||
ColourFlow |
Downloads & accessoires
Led kleuren
Lenzen
Aanstuurmogelijkheden
Montage
Garantie
> Specificaties
Type | Jade Zoom, 25 or 35 Watt track or surface mounted spot |
Colour | Black, white or grey |
Material | Anodized or coated aluminium & PC/ABS V0 |
Weight | 955 gram |
Swivel | 340° horizontal | 350° vertical |
Optics | 9°- 58° | 11°- 67° |
Light source | Bridgelux or Xicato |
Light output | 1500 - 2000 lumen |
CRI | ~90 or ~98 |
LED colours | 2700K | 3000K | 3500K | 4000K |
Power consumption | Max. 25 - 35 Watt |
Power supply | 180~264 VAC |
Driver | Driver included | Driver internal |
Dimming | Mains dimmable | Local dim | DALI | Casambi | DMX512 | Wireless DMX | Local Dim + Casambi |
Connection | Track adapter, Global or Eutrac |
IP rating | IP 20 |
Protection class | 1 |
Certifications | CE |
Lifetime | 50.000h |
LB Value | L90B10 at 50.000h |
Warranty | 5 years |
Accessories | A customizable snoot that can be build up in segments of 2 cm. Rotatable barndoor, Beam shapers and Honeycomb louvre. |
Remarks | The beam angle can be adjusted from the backside of the fixture. |
> Photometrics
Dit zijn de meest voorkomende Photometric & LDT files. Staat uw configuratie hier niet tussen? Neem dan contact met ons op via info@cls-led.com
- LM79-JADE-ZOOM-2700K-CRI90-SPOT
- LM79-JADE-ZOOM-2700K-CRI90-WIDE
- LM79-JADE-ZOOM-2700K-VIVIDNATURAL-CRI95-SPOT
- LM79-JADE-ZOOM-2700K-VIVIDNATURAL-CRI95-WIDE
- LM79-JADE-ZOOM-3000K-CRI90-SPOT
- LM79-JADE-ZOOM-3000K-CRI90-WIDE
- LM79-JADE-ZOOM-3000K-VIVIDNATURAL-CRI95-SPOT
- LM79-JADE-ZOOM-3000K-VIVIDNATURAL-CRI95-SPOT
- LM79-JADE-ZOOM-XICATO-2700K-CRI98-SPOT
- LM79-JADE-ZOOM-XICATO-2700K-CRI98-WIDE
- LM79-JADE-ZOOM-XICATO-3000K-CRI98-SPOT
- LM79-JADE-ZOOM-XICATO-3000K-CRI98-WIDE
- LM79-JADE-ZOOM-XICATO-XTM-3000K-CRI98-SPOT
- LM79-JADE-ZOOM-XICATO-XTM-3000K-CRI98-WIDE
- LM79-JADE-ZOOM-HP-3000K-CRI90-SPOT
- LM79-JADE-ZOOM-HP-3000K-CRI90-WIDE
- Download al LDT files
