Focus GIII T 230v Zwart Wit
focus-giii-in-track

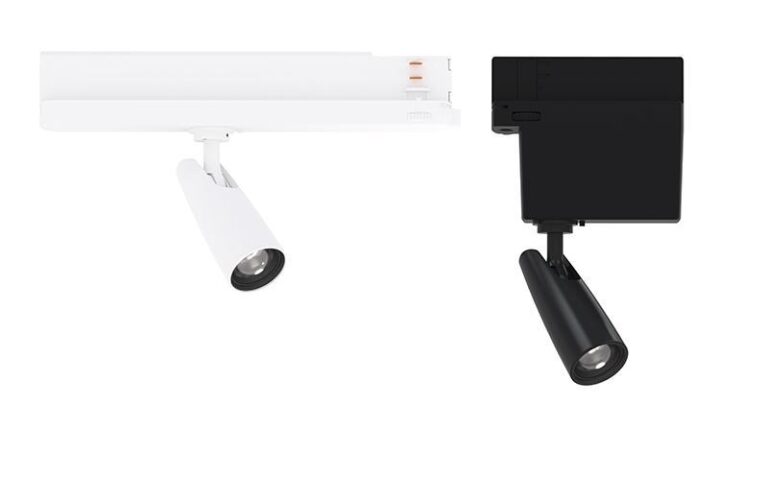

Focus GIII T 230V

The Focus GIII is a powerful zoom lighting fixture that can be controlled via DMX512. With a 10°-70° stepless zoom range and a uniform soft edge light beam, it is perfect for any application that requires precision lighting. It also features white and black housing options, an accessory holder, and customizable snoot to ensure that you get the perfect look for your space.

  • 400 lumen
  • Max. 7 Watt
  • CRI ≈95
Get a quote
Article numbers

> Information

Excellent colour rendering

Lighting designers have the choice of several light sources. There is a choice of extra-warm white (2700K), warm white (3000K), fresh white (3500K) and neutral white (4000K). With a CRI of ≈95, the colour rendering is excellent. Other light colours are available on request, subject to minimum order sizes.

CLS Performance Zoom

The CLS Performance Zoom system allows users to quickly and easily set the light’s opening angle in a range from 10º to 70º.

Horizontal & vertical locking

All Focus variants are fitted with stepless horizontal and vertical fixture locking. This prevents third parties from inadvertently changing the position of the luminaire after the luminaire has been accurately aligned, so that the lighting setting is no longer in accordance with the original lighting plan.

Casambi

With Casambi, the Focus can be dimmed accurately and quickly, without having to install an additional data infrastructure. Thanks to Casambi’s great ease of use, everyone, from professionals to consumers, can control the lighting installation. In addition, it is possible for professionals to create scenes that the end user can then choose from.

Magno Dim

CLS has developed the revolutionary Magno Dim system for users who want to be able to dim their lights individually without having to use external control equipment. This very ingenious system makes it possible to store dimming values in the Focus memory with only a small magnet. The system works extremely accurately and quickly. The dimming setting is stored within a few seconds.

The Focus 230V variants
> 230V On Track version with Magno Dim control.
> 230V In-Track variant with Casambi or DALI control.
> 230V In-Track variant Non-dim.

All variants can be fitted with extension pipes for maximum flexibility in projects.



Compatibilities

Downloads and accessories

Led colours

2700K3000K3500K4000K

Lenses

10º-70º

Control methods

Mounting

Warranty

Detailed specifications

> Specifications

TypeFocus GIII T 230V, Track mounted Zoom Spot
ColourBlack, white
MaterialCoated aluminium
Weight265 gram
Swivel360° horizontal | 90° vertical
Optics10º-70º
Light sourceLuxeon
Light output400 lumen
CRI≈95
LED colours2700K | 3000K | 3500K | 4000K
Power consumptionMax. 7 Watt
Power supply100~230 VAC
DriverDriver excluded | Driver external
DimmingMagno dim | DALI | Casambi
Connection230V track adapter, 3-phase
IP ratingIP 20
Protection class1
CertificationsCE
Lifetime50.000h
LB ValueL90B10 at 50.000h
Warranty3 years
AccessoriesBeam shapers and correction filter, filter holder, snoot
RemarksInternal slot for correction/colour filters

> Photometrics

These are the Photometric and LDT files for the most popular configuration(s). Please contact us via info@cls-led.com if your choice is missing from the list.

> Article numbers

  • F3-TN-B-2795-Z CLS Focus GIII 230V In-Track, Non dim, 2700K, CRI≈95, black
  • F3-TN-W-2795-Z CLS Focus GIII 230V In-Track, Non dim, 2700K, CRI≈95, white
  • F3-TN-B-3095-Z CLS Focus GIII 230V In-Track, Non dim, 3000K, CRI≈95, black
  • F3-TN-W-3095-Z CLS Focus GIII 230V In-Track, Non dim, 3000K, CRI≈95, white
  • F3-TN-B-3595-Z CLS Focus GIII 230V In-Track, Non dim, 3500K, CRI≈95, black
  • F3-TN-W-3595-Z CLS Focus GIII 230V In-Track, Non dim, 3500K, CRI≈95, white
  • F3-TN-B-4095-Z CLS Focus GIII 230V In-Track, Non dim, 4000K, CRI≈95, black
  • F3-TN-W-4095-Z CLS Focus GIII 230V In-Track, Non dim, 4000K, CRI≈95, white
  • F3-TC-B-2795-Z CLS Focus GIII 230V In-Track, Casambi, 2700K, CRI≈95, black
  • F3-TC-W-2795-Z CLS Focus GIII 230V In-Track, Casambi, 2700K, CRI≈95, white
  • F3-TC-B-3095-Z CLS Focus GIII 230V In-Track, Casambi, 3000K, CRI≈95, black
  • F3-TC-W-3095-Z CLS Focus GIII 230V In-Track, Casambi, 3000K, CRI≈95, white
  • F3-TC-B-3595-Z CLS Focus GIII 230V In-Track, Casambi, 3500K, CRI≈95, black
  • F3-TC-W-3595-Z CLS Focus GIII 230V In-Track, Casambi, 3500K, CRI≈95, white
  • F3-TC-B-4095-Z CLS Focus GIII 230V In-Track, Casambi, 4000K, CRI≈95, black
  • F3-TC-W-4095-Z CLS Focus GIII 230V In-Track, Casambi, 4000K, CRI≈95, white
  • F3-TA-B-2795-Z CLS Focus GIII 230V In-Track, DALI, 2700K, CRI≈95, black
  • F3-TA-W-2795-Z CLS Focus GIII 230V In-Track, DALI, 2700K, CRI≈95, white
  • F3-TA-B-3095-Z CLS Focus GIII 230V In-Track, DALI, 3000K, CRI≈95, black
  • F3-TA-W-3095-Z CLS Focus GIII 230V In-Track, DALI, 3000K, CRI≈95, white
  • F3-TA-B-3595-Z CLS Focus GIII 230V In-Track, DALI, 3500K, CRI≈95, black
  • F3-TA-W-3595-Z CLS Focus GIII 230V In-Track, DALI, 3500K, CRI≈95, white
  • F3-TA-B-4095-Z CLS Focus GIII 230V In-Track, DALI, 4000K, CRI≈95, black
  • F3-TA-W-4095-Z CLS Focus GIII 230V In-Track, DALI, 4000K, CRI≈95, white
  • F3-TM-B-2795-Z CLS Focus GIII 230V On-Track, Magno, 2700K, CRI≈95, black
  • F3-TM-W-2795-Z CLS Focus GIII 230V On-Track, Magno, 2700K, CRI≈95, white
  • F3-TM-B-3095-Z CLS Focus GIII 230V On-Track, Magno, 3000K, CRI≈95, black
  • F3-TM-W-3095-Z CLS Focus GIII 230V On-Track, Magno, 3000K, CRI≈95, white
  • F3-TM-B-3595-Z CLS Focus GIII 230V On-Track, Magno, 3500K, CRI≈95, black
  • F3-TM-W-3595-Z CLS Focus GIII 230V On-Track, Magno, 3500K, CRI≈95, white
  • F3-TM-B-4095-Z CLS Focus GIII 230V On-Track, Magno, 4000K, CRI≈95, black
  • F3-TM-W-4095-Z CLS Focus GIII 230V On-Track, Magno, 4000K, CRI≈95, white
