Jade HD
The Jade HD is a high-quality museum lighting fixture that is available with a variety of light colours and beam angles. It is also compatible with many dimming methods, making it a versatile and flexible lighting option. Additionally, the Jade HD comes with several mounting options, making it easy to install in any location.
- 1550 lumen
- Max. 25 Watt
- 92 or 97
> Information
25 Watt, high quality museum fixture.
Typical Applications
Museum & gallery lighting.
High quality light beam
Soft homogeneous light beam with a soft cut on the edges.
Should a sharp cut beam be required, than you can remove the soft diffusion filter in a few seconds.
Large choice in LED light sources
Many colour temperatures available.
Choice of CRI>90 or CRI>98.
All possible dimming methods
Local dim, DALI, DMX 512, Wireless DMX and Casambi Bluetooth control possible.
Fast adjustment of the beam angle
Changing the optic of the Jade HD takes a few minutes.
No less than 6 different beam angles are available.
Large choice of accessories
Lighting designers will find many useful accessories in order to create the perfect lighting scheme.
Several mounting variants
Rail- and surface mounting variants are available.

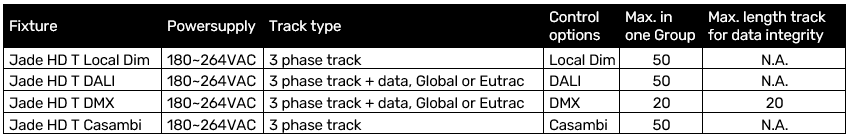

Compatibilities
Number of DMX channels needed per LED colour
Number of DMX channels needed | ||||
LED colour | 1 | 2 | 3 | 4 |
Single colour | ||||
Tunable White | ||||
ColourFlow |
Downloads and accessories
Led colours
2700K3000K3500K4000KLenses
19°-23° (Spot)37°-45° (Medium)63°-69° (Flood)Control methods
Mounting
Warranty
> Specifications
Type | Jade HD, 25 watt track or surface mounted spot |
Colour | Black, white or grey |
Material | Anodized or coated aluminium & PC/ABS V0 |
Weight | 780 gram |
Swivel | 340° horizontal | 350° vertical |
Optics | 19°-23° (Spot) | 37°-45° (Medium) | 63°-69° (Flood) |
Light source | Bridgelux |
Light output | 1550 lumen |
CRI | 92 or 97 |
LED colours | 2700K | 3000K | 3500K | 4000K |
Power consumption | Max. 25 Watt |
Power supply | 180~264 VAC |
Driver | Driver included | Driver internal |
Dimming | Local dim | DALI | Casambi | DMX512 | Wireless DMX |
Connection | Track adapter, Global or Eutrac, 150 cm cable with Shuko plug or 200cm open end cable |
IP rating | IP 20 |
Protection class | 1 |
Certifications | CE |
Lifetime | 50.000h |
LB Value | L90B10 at 50.000h |
Warranty | 5 years |
Accessories | Rail products |
Remarks | Integrated soft diffusion filter |
> Photometrics
These are the Photometric and LDT files for the most popular configuration(s). Please contact us via info@cls-led.com if your choice is missing from the list.
- LM79-CLS-JADE-HD-3000K-CRI95-SPOT-SHADE-AND-DIFFUSER
- LM79-CLS-JADE-HD-3000K-CRI95-SPOT-ELIPTICAL-BEAMSHAPER
- LM79-CLS-JADE-HD-3000K-CRI95-MEDIUM-DIFFUSER
- LM79-CLS-JADE-HD-3000K-CRI95-MEDIUM-ELIPTICAL-BEAMSHAPER
- LM79-CLS-JADE-HD-3000K-CRI95-WIDE
- LM79-CLS-JADE-HD-3000K-CRI95-WIDE-ELIPTICAL-BEAMSHAPER
