Jade Expo

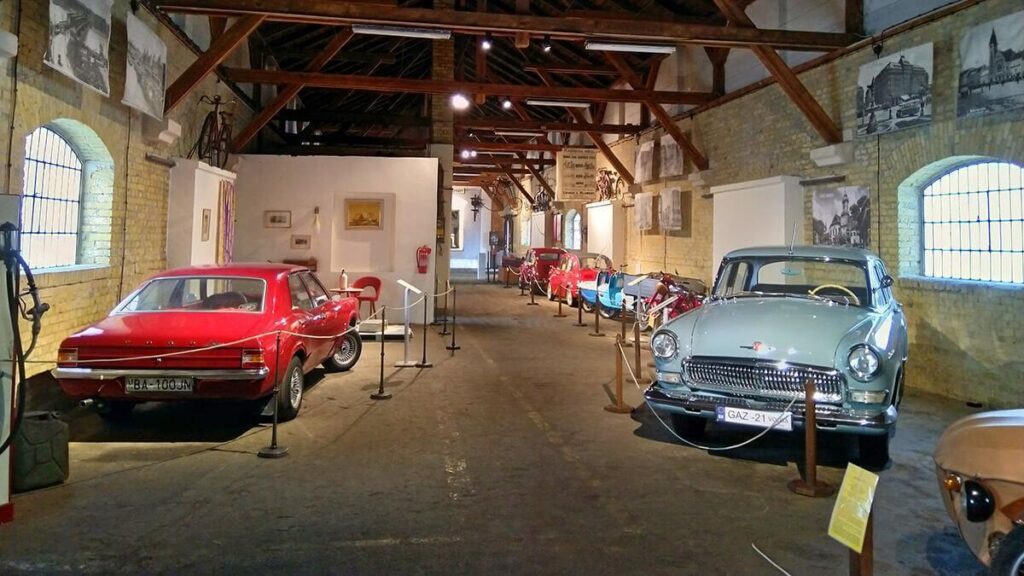

The Jade Expo is a must-have for museums and galleries, as well as for retailers who want to illuminate their products with the best. Its excellent light quality, configurable control methods and the availability of numerous accessories to further fine tune the lighting, in addition to being compact, make the Jade Expo a perfect rail lighting solution for endless projects.
- 2550 - 3850 lumen
- Max. 30 - 40 Watt
- ~90 or ~98
> Information
The Jade Expo is a high quality, 30 or 40 watt track fixture that comes with a large choice of accessories, making it perfect for museums, galleries and high-end retail applications
High quality light beam
What makes the Jade Expo stand out is its ability to create a soft, homogeneous light beam, with a soft cut-off on the edges. This is thanks to the internal CLS soft diffusion filter.
Large choice of LED light sources
Another great feature of the Jade Expo is that it offers a large choice of LED light sources, with many colour temperatures available. This gives you the flexibility to create the perfect lighting scheme for your needs. There is a choice of CRI~90 (Bridgelux) or CRI~98 (Xicato) LED modules.
All possible dimming methods
DMX512, Wireless DMX, Mains dim, DALI, Casambi and local dim through the CLS dimming system.
Fast adjustment of the beam angle
Changing a light beam takes only seconds through the use of the CLS beam shapers. No less than 5 different beam angles are available.
Large choice of accessories
The Jade Expo comes with a large choice of accessories, making it easy to adjust the beam angle and create the perfect lighting scheme for your space.
Compatibilities
Number of DMX channels needed per LED colour
Number of DMX channels needed | ||||
LED colour | 1 | 2 | 3 | 4 |
Single colour | ||||
Tunable White | ||||
ColourFlow |
Downloads and accessories
Led colours
Lenses
Control methods
Mounting
Warranty
> Specifications
Type | Jade Expo, 30 or 40 watt track spot |
Colour | Black, white or grey |
Material | Anodized or coated aluminium & PC/ABS V0 |
Weight | 780 gram |
Swivel | 340° horizontal | 350° vertical |
Optics | 19º | 33º | 42º | 70º | 55x22º |
Light source | Brdigelux, Xicato |
Light output | 2550 - 3850 lumen |
CRI | ~90 or ~98 |
LED colours | 2700K | 3000K | 3500K | 4000K D2W 1800K-3000K |
Power consumption | Max. 30 - 40 Watt |
Power supply | 100~240 VAC |
Driver | Driver included | Driver internal |
Dimming | Mains dimmable | Local dim | DALI | Casambi | DMX512 | Wireless DMX | Local Dim + Casambi |
Connection | Track adapter, Global or Eutrac |
IP rating | IP 20 |
Protection class | 1 |
Certifications | CE |
Energy label | A |
Lifetime | 50.000 |
LB Value | L90B10 at 50.000h |
Warranty | 5 years |
Accessories | Rail products, Rotatable barndoor, snoot, half snoot, beam shapers, honeycomb louvre |
Remarks | Integrated soft diffusion filter |
> Photometrics
These are the Photometric and LDT files for the most popular configuration(s). Please contact us via info@cls-led.com if your choice is missing from the list.
- LM79-JADE-EXPO-2700K-CRI90-SPOT-19DEG
- LM79-JADE-EXPO-2700K-CRI90-SPOT+BEAMSHAPER-33DEG
- LM79-JADE-EXPO-2700K-CRI90-SPOT+BEAMSHAPER-42DEG
- LM79-JADE-EXPO-2700K-CRI90-SPOT+BEAMSHAPER-70DEG
- LM79-JADE-EXPO-2700K-CRI90-SPOT+BEAMSHAPER-55x22DEG
- LM79-JADE-EXPO-3000K-CRI90-SPOT-19DEG
- LM79-JADE-EXPO-3000K-CRI90-SPOT+BEAMSHAPER-33DEG
- LM79-JADE-EXPO-3000K-CRI90-SPOT+BEAMSHAPER-42DEG
- LM79-JADE-EXPO-3000K-CRI90-SPOT+BEAMSHAPER-70DEG
- LM79-JADE-EXPO-3000K-CRI90-SPOT+BEAMSHAPER-55x22DEG
- LM79-JADE-EXPO-4000K-CRI90-SPOT-19DEG
- LM79-JADE-EXPO-4000K-CRI90-SPOT+BEAMSHAPER-33DEG
- LM79-JADE-EXPO-4000K-CRI90-SPOT+BEAMSHAPER-42DEG
- LM79-JADE-EXPO-4000K-CRI90-SPOT+BEAMSHAPER-70DEG
- LM79-JADE-EXPO-4000K-CRI90-SPOT+BEAMSHAPER-55x22DEG
- LM79-JADE-HP-2700K-CRI90-SPOT
- LM79-JADE-HP-2700K-CRI90-MEDIUM
- LM79-JADE-HP-2700K-CRI90-WIDE
- LM79-JADE-HP-3000K-CRI90-SPOT
- LM79-JADE-HP-3000K-CRI90-MEDIUM
- LM79-JADE-HP-3000K-CRI90-WIDE
- LM79-JADE-HP-3500K-CRI90-SPOT
- LM79-JADE-HP-3500K-CRI90-MEDIUM
- LM79-JADE-HP-3500K-CRI90-WIDE
- LM79-JADE-HP-4000K-CRI90-SPOT
- LM79-JADE-HP-4000K-CRI90-MEDIUM
- LM79-JADE-HP-4000K-CRI90-WIDE
- LM79-JADE-HP-2700K-CRI95-SPOT
- LM79-JADE-HP-2700K-CRI95-MEDIUM
- LM79-JADE-HP-2700K-CRI95-WIDE
- LM79-JADE-HP-3000K-CRI95-SPOT
- LM79-JADE-HP-3000K-CRI95-MEDIUM
- LM79-JADE-HP-3000K-CRI95-WIDE
- LM79-JADE-HP-3500K-CRI95-SPOT
- LM79-JADE-HP-3500K-CRI95-MEDIUM
- LM79-JADE-HP-3500K-CRI95-WIDE
- LM79-JADE-HP-4000K-CRI95-SPOT
- LM79-JADE-HP-4000K-CRI95-MEDIUM
- LM79-JADE-HP-4000K-CRI95-WIDE
- Download the LDT files
